  TRA-967/3

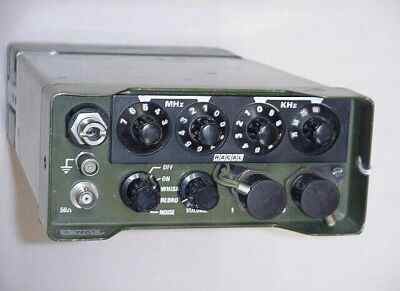

is a compact VHF transceiver, built by Racal. It comes in two versions,
a 1- watt- version ( TRA-967/1 ) and a 3- watt- version ( TRA-967/3 ). The 3- watt- version is in the museum.
Besides on/off, the mode- switch serves these functions :

  • Whisper: microphone sensitivity is increased by 20 dB
  • Rebro: two radios can form a repeater
  • Noise: Usually preset squelch is deactivated.

    This type of radio, too, was brought back from "Operation Desert Storm".

    Other captured radios from "Operation Desert Storm:

    PRC-439 PRC-638 BCC-349 TRA-906 R-143

    Frequency range:
    36.000 ... 75.975 MHz




    Technical data:
    HF output:
    3 Watt
    Antenna:
    1m- rod antenna (Antenna matching built in) or
    external antenna
    Channel spacing:
    25 kHz
    Number of channels:
    1600
    Mode:
    narrow band- FM
    Sensitivity:
    1 uV
    Powered by:
    12 V
    Power consumption:
    Transmitting: 1.4A, receiving: 120 mA
    Frequency selection:
    backlighted turning knobs
    Measurements:
    L: 285 x B: 166 x H: 76
    Weight:
    3.5 kg incl battery
