      TRA-967
   AM-50
      SPIDER











  AM-50

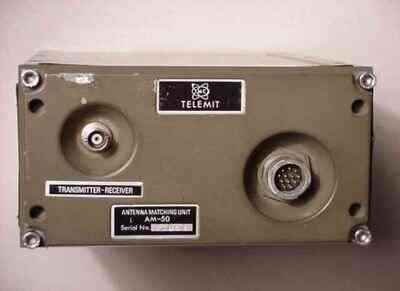

is an automatic antenna tuner for UHF antennas. It is connected between the radio and antenna. No other connection to the radio is necessary. It may be supplied with power by the transceiver's battery. It was used in combination with PRC-77, can, however, work with all radios of the given frequency and output power.

Frequency range:
30 ... 76 MHz




Technische Daten:
Matched output:
0.5 .. 70 W
Set-up time:
0.3 .. 5 Sec
Tuned antenna:
Dipole
Antenna impedance:
50 Ohm
Standing wave:
< 1.5 : 1
Powered by:
22 .. 30 V
Consumption:
Tuning: 1 A
Idle: 0.05 A
Measurements and weight:
240 x 165 x 90 mm; 4 kgs
