Search And Rescue Radios ( Sorted Chronologically )
DH4PY

To picture gallery







      RT-60
 ACR RT-60B
      RT-5015/PRC-502












All American SAR- Radios from their beginning to 1968 are part of the collection. More modern ones are (still) too expensive....


BC-778
(1941)

CRC-7
(1942)

PRC-17, A
(1953)

PRC-32
(1958?)

PRC-49 A, B, C
(1962)

PRC-63
(1965)

PRC-96
(1976)

American SAR Radios

RT-159/ URC-4
(1952)

RT-285/ URC-11
(1954)

RT-278/RT-60 B
(1962)

URC-64
(1964)

URC-68
(1965)

PRC-90, -1,-2,-A
(1968ff)

RT-1531, 1535
PRC-112, A
(198?)

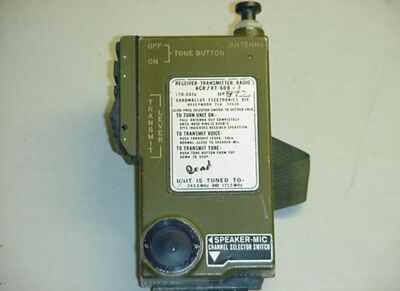

  RT-278/RT-60 B

was used by the Navy and the Air Force. It is the same SAR -Radio as the RT-278/URC-10, except that it has different frequencies:

Frequencies:
121.5 MHz
243 MHz.




Technical data:
Channels:
2, crystal controlled.
HF output:
200 mW.
Sensitivity:
10 uV.
Modulation:
AM, mcw.
Year of issue:
1962.
