Search And Rescue Radios ( Sorted Chronologically )
DH4PY

To picture gallery







      RT-60B-2
 RT-5015/PRC-502
      SE 662

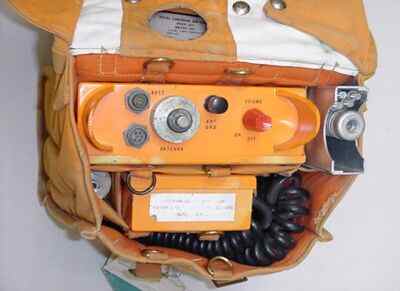

RT-5015/PRC-502 Royal Canadian Air Force Receiver- Transmitter, Radio

is a Canadian SAR- radio. It works on the low HF band. Astonishing for the early year of issue ( 1962 ) is the fact, that it is completely solid state. In spite of that it is relatively large.
Transceiver and battery case are in two separate housings.
Serial numbers: Radio: 175, Pouch: 140, Battery box: 163 hint that it was built only in small numbers.

Frequency:
5718 kHz




Technical data:
HF output:
1 W
Channels:
1, crystal controlled
Modulation:
AM
Antenna:
Rod antenna with coil or
Dipole of 81.8 feet length.
Voltage:
12 V
