Search And Rescue Radios ( Sorted Chronologically )
DH4PY

To picture gallery







      CRC 7/URC4
  RT-159/URC4
      AN/PRC-17












All American SAR- Radios from their beginning to 1968 are part of the collection. More modern ones are (still) too expensive....


BC-778
(1941)

CRC-7
(1942)

PRC-17, A
(1953)

PRC-32
(1958?)

PRC-49 A, B, C
(1962)

PRC-63
(1965)

PRC-96
(1976)

American SAR-Radios [ click links ]

RT-159/ URC-4
(1952)

RT-285/ URC-11
(1954)

RT-278/ URC-10
(1962)

URC-64
(1964)

URC-68
(1965)

PRC-90, -1,-2,-A
(1968ff)

RT-1531, 1535
PRC-112, A
(198?)

You may also read the article by Alan Tasker :
"U.S. Military Portable Radios"

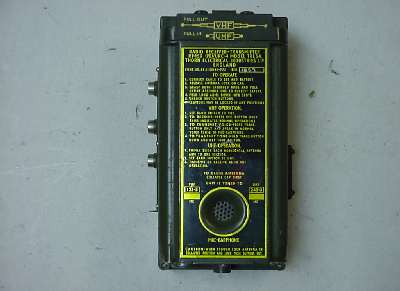

  RT-159/URC-4 (1952)

is an American SAR -Radio, used by the Air Force and the Navy.

It comes in several colors; here I have green; green/yellow; yellow/red.

C
L
I
C
K		 C
L
I
C
K
Frequency range:
121.5 and 243 MHz.



Technical data:
Channels:
2 crystal controlled.
HF Power:
ca. 35 mW.
Sensitivity:
10 µV.
Modulation:
AM, mcw.
Year of issue:
1952.
Replaces:
CRC-7
Replaced by:
URC-11
