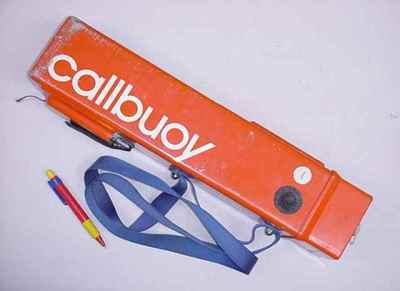

  Callbuoy RH 19

is a transistorized portable radio for distress at sea with two-tone-alarm. It is built in a watertight plastic housing, capable of floating.

It works on 2182 KHz, the international frequency for distresses at sea. Every full and half hour this frequency must be kept free from traffic to hear even weak signals. Testing of the transmitter is only allowed when permitted by the authorities.

The two-tone-alarm effects that any traffic is stopped at once to listen to the SOS.

Frequency:
2182 KHz




Technical data:
Frequency:
2182 KHz
Frequency control:
Crystal
HF output / transmitted power:
5 W / 2 W
Modulation:
AM (?)
Two-tone-alarm:
1300 Hz / 2200 Hz
Sensitivity:
1 µV / 15 dB
Range:
80 Sea miles or 20.000 square sea miles
Antenna:
Teleskopic antenna 2 m
Counterpoise:
6 m wire with weight
Operation time:
80 hrs transmitting / receiving cycle 9 : 1
Measurments and weight:
460 x 115 x 100 mm; 3.4 Kg mit battery
Watertight:
up to 1.4 m water depth
Produced from:
1969
