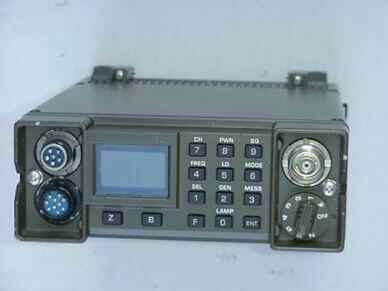

 S.P.I.D.E.R
      TFF 8











  "Signaal Portable Infantry Digital Encrypted Radio manpack"

is a Dutch radio, still in use today.
It was built in small numbers only and was used by special Dutch Forces abroad.
An optional encrypting / data unit allows sending of highspeed or lowspeed data or encryption of voice; you can send precoded messages or do selective calling.

Together with an optional mounting, the S.P.I.D.E.R serves as a mobile radio.

Frequency range:
30 ... 107.975 MHz




Technical Data:
Channels:
3120
Channel spacing:
25 kHz
Modulation:
FM
Preset channels:
9
HF Output:
20 mW, 200 mW, 2 W, 5 W
Antenna impedance:
50 Ohm
Maximum standing wave ratio:
1 : 4
Squelch:
150 Hz tonesquelch
NF frequency sent:
300 ... 3400 Hz
Powered by:
12 V ( 9 - 16 V )
Consumption:
Sending: 1.2 A at 2 W HF; 2 A at 5 W.
Receiving: 140 mA.
Sensitivity:
0.4 uV / 10 dB
Handset:
H-189/GR
Weight transceiver:
2.6 kg
Weight manpack:
5 kg
Handbook issued:
1990
