      VRC-321











  HF BLU

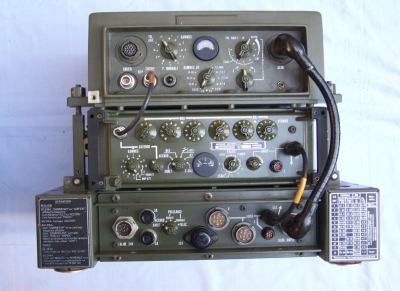

was built in France by L.M.T (Le Materiel Télefonique). HF BLU is a HF radio station, used in France by the army; and by the police as emergency radio.

The components are::
Mounting SG-214A
[ <-- Click ]
TRX ER-243A
[ <-- Click ]
Power amplifier AM-318A
[ <-- Click ]
ATU BX-155A
[ <-- Click ]
Depending on the arranging of the components and accessories, (for example the ER-243A as portable version needs a battery, antenna and carrying frame)- There are the following versions:

a 20W portable station (with battery or hand crank),

a 20W mobile station (supplied by the car battery)

a 100W mobile station (supplied by the car battery)

a 100W semi- fixed station (supplied by a PSU).

All the stations have the modes AM, SSB, or CW. The frequencies are chosen by decade switches. After changing the frequency, the ATU needs a tuning time of
20 seconds.


Frequency range:
1.5 .. 29.999 MHz




Technical data:
HF- output:
100 W PEP
Channels:
28500
Stored channels:
zero
Modes:
Speech: A3J, A3H, A3
CW: A2J, with optional adapter also F1
Sensitivity:
A3J: 1.5 µV @ 10 dB
A2J: 0.5 µV @ 10 dB
A3: 10 µV with a modulation of 50 %
Range:
Portable 20W, with 5m- whip antenna: 30 .. 50 km
Mobile 100W, with 5m- whip antenna: 100 .. 150 km
Powered by:
Portable: Battery 24V / 7Ah
mobile 22 .. 30 V
Antennas:
Whip antenna 5m
Dipole antenna up to 2 x 25 m
Handbook:
dates from 1980
