Modern Era FM Backpack Portables
DH4PY

To the picture gallery







      RT-3600
  RT-4600
      RT-3610











  RT-4600

is a Dutch tactical backpack; the successor of backpack RT-3600.
It consists of Transceiver RT-4600, battery holder, portable frame, handset, and short and long antenna. It was introduced into the Dutch Army in 1984.

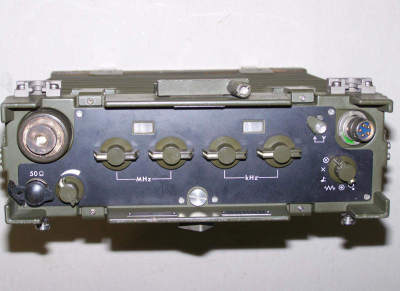

The transceiver RT-4600 of the set comes either in olive color or in olive with a black front. (The radio of the collection).

Two variants are known: one with 50 kHz and one with 25 kHz channel spacing. The backpack version as well as the mobile version ( see VRC-4622) of the collection are the 25 kHz variant.

Frequenzbereich:
30.000 ... 75.975 MHz




Technical data:
HF Output:
7 Watts
Channels:
1840
Channel spacing:
25 kHz
Modulation:
FM
Sensitivity:
0.2 uV / 20 dB
Voltage:
RT-4600: 12V
