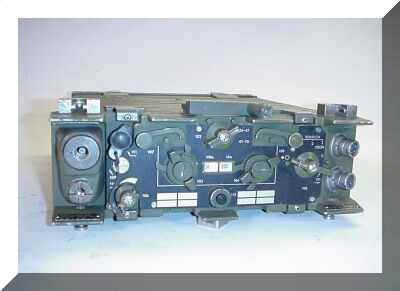

  RT-3600

Is a Dutch transceiver. It belongs to the same family as the RT-3610 ; many modules can form a two portable and one mobile unit.

It can be used as simplex, duplex or relais transceiver; it also can interkommunikate with on board units. The modules are watertight, light and mechanically very strong.

Distances between 8 and 30 km can be reached.

A mobile station of the RT-3600 consists of:

  • RT3600 Transceiver
  • C-3621 Switch box
  • MT-3621 Mounting
  • LS-3621 Loudspeaker
  • IC-3620 Intercommunication unit
  • AF-3620 Loudspeaker unit
  • AM-3600 HF- amplifier

    A portable station of the RT-3600 consists of:
  • RT3600 Transceiver
  • BX-3600 Battery box or BX-3601 Cell-box
  • BG-3600 Harness
  • AT-272A/PRC (antenna short)
  • AT-271A/PRC (antenne long)
  • CX-3606 Cable set
  • Handset

    These radios usually come demilitarized. i.e. without HF- part. The radio here is complete- very unusual.

    Frequency range:
    26.000 ...69.950  MHz, in two ranges:

    26.000 ... 46.950
    47.000 ... 69.950




    Technical data:

    Mode
    FM
    Channels
    880
    HF output
    1 or 2 Watt
    Squelch
    Tone squelch 150 Hz
    Frequency departure
    +- 3.5 kHz
    HF amplifier AM-3600
    low power: 0.95 .. 1.75 W @ 50 Ohm
    medium power: 8 .. 15 W @ 50 Ohm
    high power: 25 .. 45 W @ 50 Ohm
    Frequency step
    50 kHz
    Powered by
    Mobile 24 V; Portable 15 V Nicad- battery
    Measurements and weight
    252 x 104 x 330 (with battery box); 5.8 kg
    Accesories in the collection:
    Carrying bag, Headset, throat microphone, loudspeaker LS-3621.
