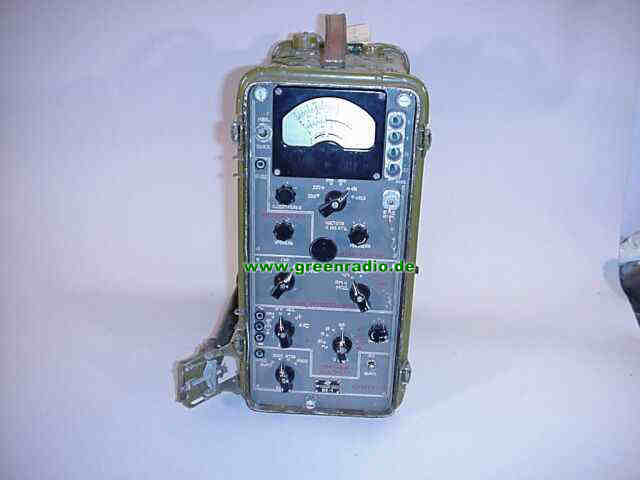

Portable UHF - Measuring instrument for examination and repairing of UHF radios.

FM: 20 - 46.1 MHz, TO: 46.1 - 51.53 MHz

Signal generator,

Output 2, 5, 10, 100 UV.

Modulation factor meter,

f: 46.1 - 51, 35 MHz, m=0,2-0,9 + - 25%.

Frequency destortion meter,

f: 20 - 46.1 MHz, f = 3 - 12 MHz, + - 25%.

Quartz generator,

3000, 9730, 10920 kHz, which can be overlaid with 150 kHz to a spectrum. That results in a range from 18... 55.95 MHz at 150-KHz-Schritten.

Vacuum tube voltmeter,

DC 0-250v + - 10%, AC 0-30v + - 20% with 100-2000 cycles per second.

Antenna current meter,

with thermal instrument type A and type B and dummy.

Multiple meter,

DC 0-1000 V, 0-2ä; AC 0-500 V, 25 A.

Tube tester,

for types 2SH27L, 2SH27P, 2P29P, 2CH1L, 4P1L, 4SH1L, 12SH1L.

Check of speech sets and telephone handsets.

Check of batteries (Akkus),

Type 2 NKN-24.
