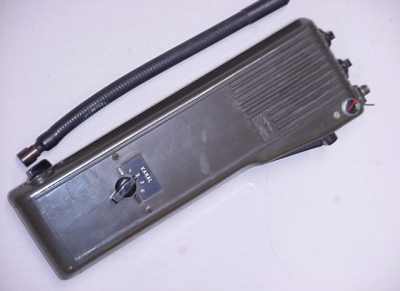

  HFG 160 VI

is a solid state handy portable. Ample special accessories provide a very widespread use. Different parts of the chassis are put in separate shielded compartments for easier maintenance. The radio and the loudspeaker / microphone are water- resistant. Crystals can be changed under a special lid.

Frequency range:
146 .. 174 mHz




Technical data:
HF- output:
250 mW
Channels:
4
Mode:
F3
NF- Frequency:
500 Hz .. 3 kHz
Sensitivity:
0.7 µV
Tone call:
single or double tone
Transistors:
transmitter: 7; receiver: 15
Channel spacing:
50 kHz, may be changed to 25 or 20 kHz
NF- output:
500 mW
Loudness:
switchable in 3 steps
Powered by:
battery 15 V 225 mA
Power consumption:
receiving 14 .. 50 mA; transmitting 80 mA
Operation time:
transmitting 10 % / receiving 90 % : 8 hrs.
Weight:
radio 850 g, battery 170 g
