      Teleport VI
Teleport VII 451/461
      SEM 56











  Teleport VI 451/461

is a UHF handy portable of the Teleport-VII-Family in the 70- cm- band. A lot of accessories provide a widespread use.

Like other Teleport-VII-radios it comes in three different housings:


  • Housing K (kurz):
      a small battery is attached to the bottom of the radio.
  • Housing L: (Lang):
      a larger battery is attached to the bottom of the radio.
  • Housing D1 (thick):
      the battery is attached to the back of the radio.

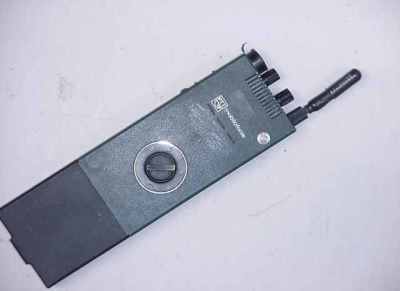

    The radio is question is a Teleport VII 461 in long housing.

    Frequency range:
    440 .. 455 MHz ( Teleport VII 451 )
    455 .. 460 MHz ( Teleport VII 461)



    Technical data:
    HF output:
    0.1 .. 0.3 W, 1 W; 2.5 W
    Channels:
    5
    Mode:
    F3
    NF- frequency;:
    300 .. 3000 Hz
    Call tones:
    1750 Hz and 2135 Hz, single or simultaneous
    NF- output:
    0.4 W / 15 Ohm
    Loudness:
    switched in 4 steps
    Sensitivity:
    0.6 - 0.8 µV / 20 dB
    Powered by:
    9.6 V
    Weight:
    Housing K : 700 g
    Housing L und D : 800 g
