      Codan 9780
  Codan NGT SRx












  Codan NGT SRx (New Generation Transceiver)

This HF radio is used for connections under difficult conditions over vast distances; from offroad- vehicles, ships or planes.
It is built in Australia by CODAN ©.

It is mostly used by the government, private organisations and private persons.
The flexible design consists of matching blocks.

The provided equipment set can be set together as a mobile as well as a fixed station; Also the programming software as well as the programming cable are included.

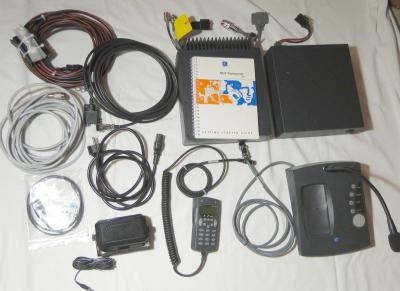

The complete equipment set

At mobile operation the handset is used remotely from the radio, mounted at a suitable place.
Components of the mobile station

When used as a Fixed station, the special cable with handset and loudspeaker can be used. As option the NGT console with 2m connecting cable can be used. The console consists of handset, PTT, amplifying microphone, loudspeaker and four additional hotkeys.
Components of the fixed station

The Codan NGT, too, as mobile station, can use the proven automatic antenna 9350, remotely controlled by the radio.
Codan 9350

This radio lays value on modern operation.
The control panel resembles a cell phone, it is small und user friendly.
The complete operation and programming is carried out by use of this handset.
The operator can program channels, addresses, and functions; and can adjust the radio to his own needs.

Some of its outstanding features are:

  • The innovative handset with programmable hotkeys

  • Built in address book with up to 100 adresses

  • Easy installation

  • Easytalk © (reduces interferences and background noises)

  • Emergency call - Selcal

  • Smart Monitoring (channels are scanned while the radio is muted, calls can be
       received on any of the scanned channels.)

  • Large dynamic range while receiving

  • Programmable via RS232- port possible

  • Language encryption

  • Fax, data, Email, internet possible

  • Wireless diagnosis : a second radio can measure parameters and change them.
        Also a remote controlled switch out is possible.

  • ALE automatically choses the suitable channels.
       CALM ©, an enhanced ALE by Codan, can scan several networks with 8 ch/sek, three
       channels more than the conventional ALE. A profile of the channel charistica is
       automatically stored for 24 hours in a database. This database has more than 7 times
       more storage capacity than conventional ALE. Thus the the HF activities are reduced,
       and immediately after switch on, a favorable channel is available.

  • A built in system test (BITE) shows the system characeristica at any time.

  • CALL POSSIBILITIES:
       SELCALL: A unique radio is addressed, and only this one answers.
       PHONECALL: Telephone calls are possible via base stations, connected to the
        telephone net.
       MESSAGE CALL: Up to 64 digits long text news can be sent and received; without
        external computer.

  • An optional GPS- receiver can be connected to the RS232- port. Thus own GPS data
       can be sent and GPS data of a distant station can be recalled.

  • Easy access to the programming connector at the downside of the handset.
        Programming is possible via enclosed USB cable and likewise enclosed software.


    Codan offers a chargeable HAM option. With this option the HAM bands are tunable.

    Codan, however, does not answer to contact attempts.. If, after adventurous tries, you at last get this option, it only consists of a simple key.



    Frequency rnge:
    TRX: 1.6 ... 30 MHz
    RX: 250 kHz ... 30 MHz




    Technical data NGT SRx:
    HF output:
    125 W
    Channels:
    400
    Modes:
    J3E, USB, LSB, AM, CW
    Protective circuits against:
    Wrong polarity
    Overvoltage
    Undervoltage
    Bad VSWR
    High temperature
    Operational voltage:
    12V, minus at chassis
    Consumption:
    TX bis 14 A
    RX 0.7 A
    Measuremets and weight:
    TRX: 270 x 210 x 65 mm; 3.3 kg
    Handset: 65 x 45 x 130 mm; 0.3 kg

    Technical data mobile antenna:
    Frequency:
    transmitting: 2.5 .. 27 MHz
    receiving: 250 kHz .. 30 MHz
    HF- output:
    up to 125 W
    Consumption:
    Receiving 125 mA
    Transmitting 1 A
    Powerd by:
    12V, supplied by the transceiver
    Tuning speed:
    Typical 2 Sec
    over the complete frequency 2 .. 27 MHz : 5,5 Sec
    Impedance:
    50 Ohm
    VSWR:
    1.5 : 1
    Modes:
    Scan- and Tune- mode (both controlled by the transceiver -
    by scan- and tune- buttons)
    Connections:
    Control cable + coax cable: each 6m long
    Weight:
    5.8 kg
    Length:
    245 cm
