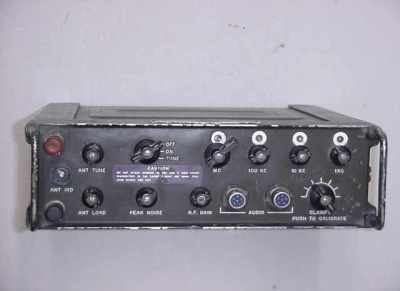

  RT-794/PRC-74B

is a solid state portable HF transceiver for special forces. It was built by Hughes and issued 1966 as a replacement for PRC-74A (2 ... 12 MHz).


The burst coder GRA-71 (<= link)
can be used in combination with the PRC-74.

Frequency range:
2 ... 18 MHz




Technical Data:
Mode:
USB, CW
Channel spacing:
1 kHz
Channels:
tunable
Frequency control:
Synthesizer
HF Output:
15 W
Sensitivity:
0.7 µV
Headphone / Microphone:
H-140, M-80
Antenna:
AS-1887
Powered by:
12 V (several batteries, power supplies, chargers)
Developed:
1965
Replaces:
PRC-74A
replaced by:
PRC-70; PRC-104
