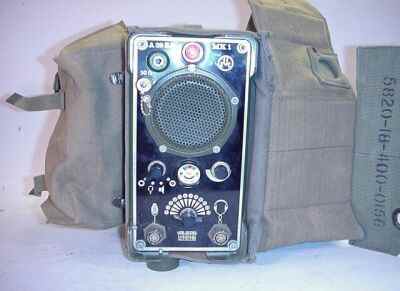

A39SA MK 1

is an exotic radio in my collection: it's origine is South Africa. It is a solid state backpack.

Channels: 12:

30,1 ... 30,65 MHz ,50 KHz channel spacing.

Power output:

HF: 1 Watt; NF: 400 mW.

Modulation:

AM

Intermediate frequency:

10,7 MHz.

Antennas:

Whip antenna or external Ground-plane.

Sensitivity:

better than 10 dB for 1 uV input.

Power supply:

12 V internal ( 2 x 6 V lantern battery); or external 12 ... 26 V.

Power consumption:

receiving 50 mA, transmitting 400 mA at 12 V.
